Body
Nyatoh
Body Finish
Gloss
Body Material
Nyatoh
Body Shape
Dinky®
Sale
Sold Out

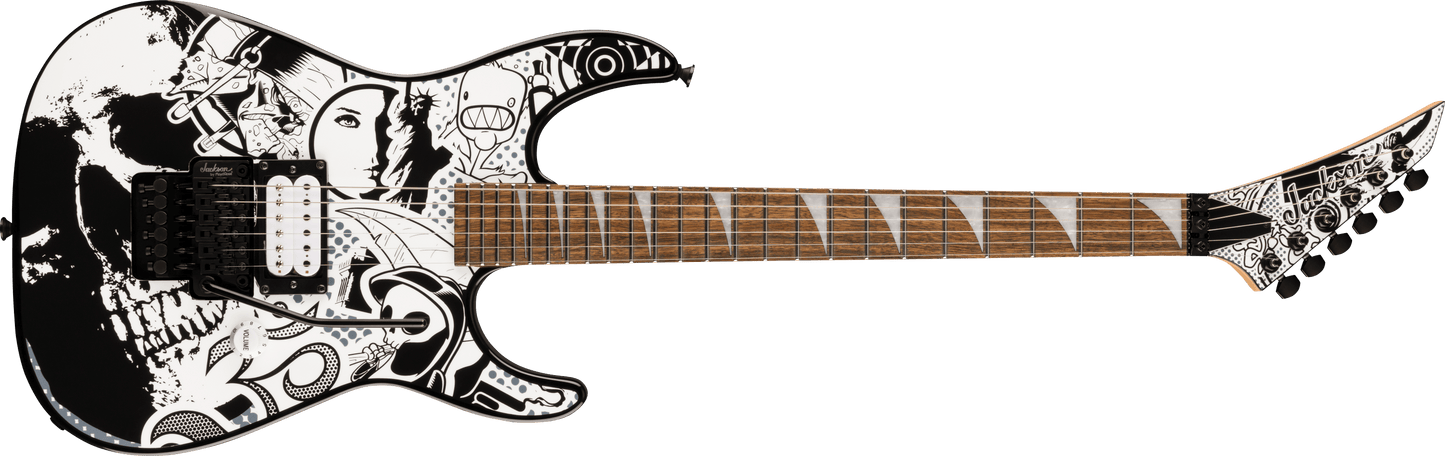

X Series Dinky® DK1 H
X Series Dinky® DK1 H
Model #:
2910032500
Regular price
$833.18
Regular price
$833.18
$833.18
Sale price
Unit price
per
Couldn't load pickup availability
X Series Dinky® DK1 H
Regular price
$833.18
Regular price
$833.18
$833.18
Sale price
Unit price
per
Overview
Distinctive and affordable, Jackson’s X Series Dinky® models are built for speed and comfort! The Jackson® X Series Dinky™ DK1 H DX is a venerable double-cutaway workhorse that offers many fine features desired by today’s shredders.
Overview
Features
- 25.5” scale length
- Nyatoh body
- Bolt-on maple neck with graphite reinforcement and scarf joint
- 12”-16” compound radius laurel fingerboard with 24 jumbo frets and pearloid sharkfin inlays
- Jackson high-output humbucking pickups
- Licensed Floyd Rose® double-locking tremolo bridge system
- Jackson sealed die-cast tuners and standard strap buttons
Highlights
12"-16" COMPOUND RADIUS LAUREL FINGERBOARD
Jackson pioneered the use of the innovative 12"-16" compound radius design, in which the laurel fingerboard gradually flattens toward the heel from its more rounded profile at the nut. This makes for comfortable and natural-feeling chording and riffing near the nut, with optimal shred articulation and bending nearer the heel.
FLOYD ROSE® SPECIAL DOUBLE-LOCKING TREMOLO BRIDGE SYSTEM
Recessed for picking-hand comfort, the Floyd Rose Special double-locking tremolo features zinc alloy saddles and a zinc alloy sustain block. The double-locking design allows you to lock your guitar in tune at the nut and at the bridge, resulting in excellent tuning stability and sustain throughout your most aggressive pull-ups and dive bombs.
BOLT-ON MAPLE NECK WITH GRAPHITE REINFORCEMENT AND SCARF JOINT
The bolt-on neck construction adheres the maple neck to the body of the guitar with screws, resulting in a bright tone with more control. For the touring musician, graphite-reinforcement rods flank the truss rod for increased neck stability that help maintain the shape of the neck through extreme humidity or climate fluctuations. The scarf joint creates an angled back headstock, which increases the tension behind the nut that eliminates the need for string trees and/or string retainer bars.
Specs
Body
Electronics
Bridge Pickup
Jackson® High-Output Humbucking
Controls
Volume
Pickup Configuration
H
Switching
None
General
Color
Scull Kaos
Orientation
Right-Hand
Product Name
X Series Dinky® DK1 H, Laurel Fingerboard, Skull Kaos
Series
X
Hardware
Bridge
Floyd Rose® Licensed Double Locking Tremolo
Control Knobs
Black Dome Style
Hardware Finish
Black
Pickup Covers
White
Strings
Nickel Plated Steel (.009-.042 Gauges)
Switch Tip
White
Tremolo Arm
Licensed Floyd Rose® Collared
Tuning Machines
Jackson® Sealed Die-Cast
Measurements
Fret Size
Jumbo
Scale Length
25.5" (64.77 cm)
Miscellaneous
Commodity Code
9207.90.0040
Style
1 Humbucking
Neck
Fingerboard Material
Laurel
Fingerboard Radius
12" to 16" Compound Radius (304.8 mm to 406.4 mm)
Headstock
Reverse Jackson® Pointed 6-In-Line
Neck Construction
Bolt-On with Graphite Reinforcement and Scarf Joint
Neck Finish
Satin
Neck Material
Maple
Number of Frets
24
Nut Material
Floyd Rose® Special Locking
Nut Width
1.6875" (42.86 mm)
Position Inlays
Pearloid Sharkfin
Side Dots
White
String Nut
Floyd Rose® Special Locking
Truss Rod
Dual-Action Head Adjust
